Solar Water Pumping System (JNP7K5H-V5, JNP15KH-V5, JNP22KH-V5, JNP30KH-V5)

Product Overview

The Solar Water Pumping System is an innovative and environmentally friendly solution designed to replace traditional diesel-powered water pumping systems. By harnessing solar energy, this system offers a sustainable, cost-effective, and fully automated way to pump water. This system is composed of three core components: solar panels, solar water pumping inverters, and water pumps.

The solar panels convert sunlight into electricity, which is then used to power the water pump. With features such as zero emissions, low maintenance, and automatic operation, this system is ideal for use in remote, off-grid locations, desert areas, and agricultural irrigation applications. It significantly reduces both operational costs and environmental impact compared to traditional fuel-based systems.

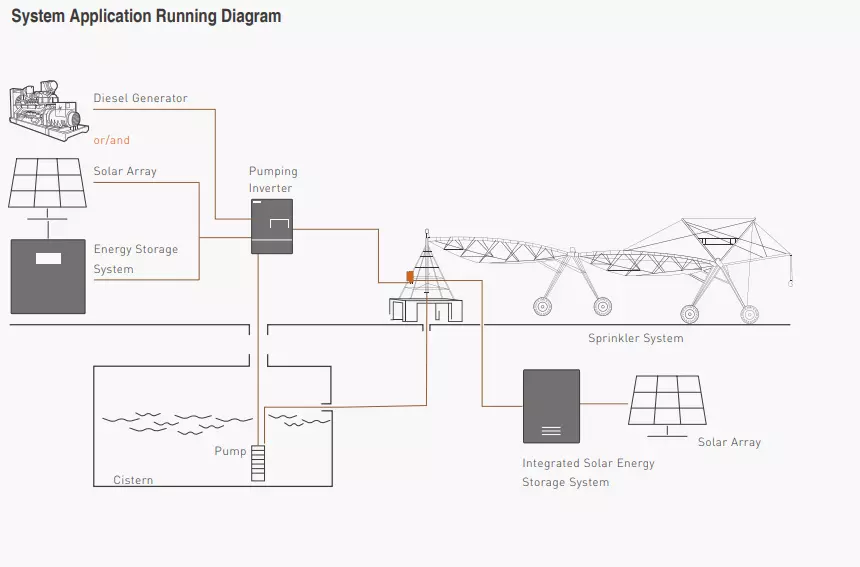

System Components and Operation

1. Solar Panel Array

The solar panel array consists of multiple photovoltaic (PV) modules connected in series and parallel to absorb sunlight and convert it into electrical energy. This energy is used to power the inverter, which drives the water pump.

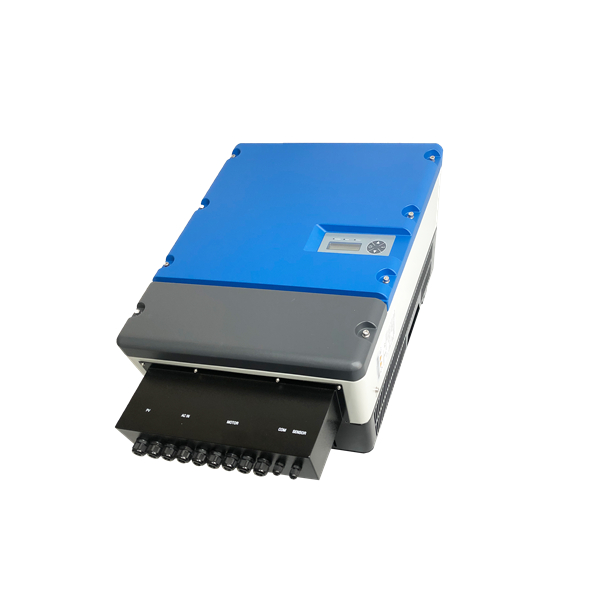

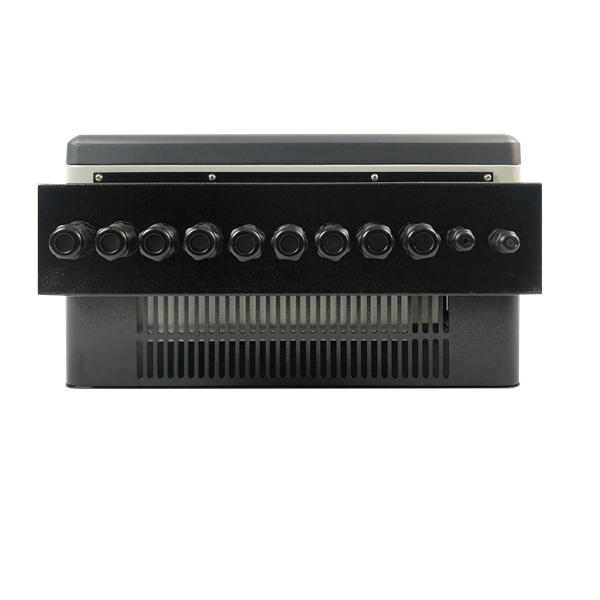

2. Solar Water Pumping Inverter

The inverter is the core of the system. It converts the DC electricity generated by the solar panels into AC power to drive the water pump. It also features Maximum Power Point Tracking (MPPT) technology, which ensures that the system operates at peak efficiency by adjusting the power output in response to changing sunlight conditions.

3. Water Pump

The water pump, typically powered by a three-phase AC motor or permanent magnet synchronous motor, draws water from wells, rivers, or lakes. The pumped water is then stored in tanks or used directly for irrigation.

Model Specifications

The Solar Water Pumping System comes in four different models, designed to meet varying requirements based on power output and application:

Parameter Category	JNP7K5H-V5	JNP15KH-V5	JNP22KH-V5	JNP30KH-V5
PV Input
Max. Input Voltage	880V	880V	880V	880V
Recommended MPPT Voltage	460-850V	460-850V	460-850V	460-850V
Max. Input Current	30A	45A	45A	67A
Max. MPPT Efficiency	>99%	>99%	>99%	>99%
AC Output
Max. Motor Output Power	7.5kW	15kW	22kW	30kW
Rated Output Voltage	380-460Vac (3PH)	380-460Vac (3PH)	380-460Vac (3PH)	380-460Vac (3PH)
Output Frequency Range	0-50/60Hz	0-50/60Hz	0-50/60Hz	0-50/60Hz
Max. Output Current	18A	29A	42A	57A
Performance Parameters
Max. Flow Rate (m³/h)	20-22	36	54	66
Max. Head (m)	43-55	80	86	94
System Features
Protection Level	IP65	IP65	IP65	IP65
Operating Temperature	-25~+60℃	-25~+60℃	-25~+60℃	-25~+60℃
Communication	RS485, GPRS/Bluetooth	RS485, GPRS	RS485, GPRS	RS485, GPRS
Dimensions (W/D/H mm)	265/150/330	265/173/518.5	460/260/715	460/260/715
Weight (kg)	6.5kg	17.5kg	35kg	35kg

Key Benefits

• Cost Savings and Energy Efficiency: The system uses solar energy, significantly reducing ongoing fuel and electricity costs compared to traditional systems. In applications like large-scale agricultural irrigation, the cost savings can be substantial over the lifetime of the system.
• Low Maintenance: With no moving parts in the solar panel array and only a few mechanical components in the pump, the system requires minimal maintenance, reducing downtime and operational costs.
• Environmentally Friendly: By using solar power, the system eliminates the need for diesel or other fossil fuels, reducing your carbon footprint and contributing to a more sustainable environment.
• Adaptability: The system’s modular design allows it to be easily scaled to meet the specific needs of different applications. Whether you need a small pump for domestic water use or a large pump for agricultural irrigation, the Solar Water Pumping System can be customized accordingly.

Application Scenarios

The Solar Water Pumping System is versatile and has been successfully deployed in a variety of applications across more than 130 countries:

• Agricultural Irrigation: Provides a reliable and cost-effective irrigation solution for large farmlands, especially in areas with unreliable electricity supply.
• Desertification Control: Powers irrigation and water supply systems for desert reclamation projects, contributing to environmental sustainability.
• Livestock Watering: Ideal for supplying drinking water to livestock in remote areas where access to power is limited.
• Off-Grid Water Supply: Perfect for rural and isolated communities that need a reliable water source without depending on the grid.
• Landscape Irrigation: Used for landscape irrigation and water features, offering an eco-friendly alternative to traditional water pumps.

Conclusion

The Solar Water Pumping System (JNP7K5H-V5, JNP15KH-V5, JNP22KH-V5, JNP30KH-V5) represents a cutting-edge solution for various water pumping needs, offering reliable, cost-effective, and eco-friendly alternatives to traditional diesel-powered systems. Whether you need water for irrigation, livestock, or off-grid communities, this system ensures efficient and sustainable water supply.

Contact us today to learn more about how our solar water pumping systems can meet your specific needs and help you save on costs while protecting the environment.
