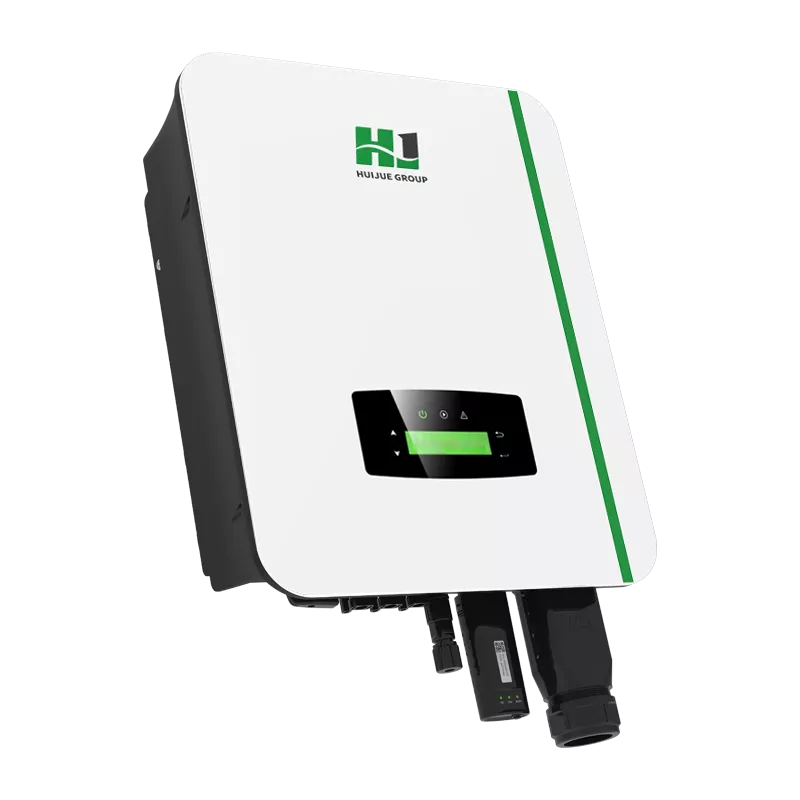

The 9kW Hybrid Grid-Tied Solar Inverter from HuiJue Group is a highly efficient and reliable solution designed for residential and small commercial solar applications. Combining the benefits of solar energy generation with battery storage, this hybrid inverter offers flexible energy management, seamless grid integration, and enhanced energy savings. Whether you're looking to reduce your energy bills or improve energy reliability, this inverter delivers optimal performance for your solar system.
How Our Hybrid Inverter Transforms Your Energy Use
This intelligent system continuously optimizes your energy flow, making smart decisions to maximize the value of every kilowatt-hour you produce and consume.
- Solar Self-Consumption First: Directly powers your home or business with clean solar energy while simultaneously charging your battery for later use.
- Intelligent Battery Backup: Automatically switches to stored battery power during the evening, peak tariff hours, or grid outages, slashing your reliance on expensive grid electricity.
- Seamless Grid Interaction: Safely exports surplus solar energy to the grid for credits or income, and can draw minimal power when needed, all while providing supportive grid services.
- Uninterrupted Power Supply (UPS): With a lightning-fast sub-10ms transfer time, it ensures critical appliances like lights, routers, and refrigerators stay on without a flicker during a blackout.
Key Features & Advantages
1. Optimized for High Solar Yield and Compatibility
Designed to get the most out of your solar investment, today and in the future.
- High PV Oversizing Support: Accepts up to 9kW of solar input (2x its nominal AC output), allowing for a larger PV array that captures more energy in sub-optimal conditions.
- Dual MPPT Flexibility: Features 2 independent Maximum Power Point Trackers (MPPTs), enabling optimal performance from solar arrays on different roof planes or with varying orientations, minimizing energy losses from shading.
- Future-Ready Compatibility: Supports high-string currents up to 21A, making it fully compatible with the latest high-power and bifacial solar panel technologies.
2. Flexible and Scalable Battery Integration
Build a storage system that fits your current needs and budget, with room to grow.
- Wide Battery Compatibility: Works with a broad range of battery technologies, including advanced Lithium-ion (LiFePO4), traditional Lead-acid, and innovative Sodium Metal Chloride batteries.
- Easy Capacity Expansion: Two independent battery ports allow for flexible configurations and straightforward capacity upgrades in the future without changing the core inverter.
- Powerful Performance: Delivers a 160% overload capacity for 200ms in off-grid mode, enabling the smooth start-up of demanding appliances like air conditioners or water pumps.
3. Smart Energy Intelligence & Control
Advanced features that deliver savings, convenience, and grid-friendly operation.
- AI-Powered Cost Optimization: Built-in intelligence and Virtual Power Plant (VPP) readiness allow for dynamic energy scheduling based on time-of-use tariffs, maximizing bill savings and unlocking potential revenue streams.
- Grid Support Functions: Provides dynamic reactive power compensation to help stabilize your local grid and improve power quality, which can be beneficial in areas with weak infrastructure.
- Comprehensive Remote Management: Monitor system performance, adjust settings, and receive alerts from anywhere via multiple communication options, including Wi-Fi, 4G, and RS485.
Technical Specifications at a Glance
The table below summarizes the core technical parameters of the HuiJue Group 9kW Hybrid Solar Inverter, Model HJ-IH4863T.
| Production Model |
HJ-IH4863T(E-12) |
| PV Input Date |
|
| Max, Input Power |
9KW |
| MPPT Operating Voltage Range |
150-850V |
| Max.Short Circuit Current |
18.5*2A |
| Number of MPPT Trackers |
2/2 |
| Battery Input Data |
|
| Battery Voltage Range |
80-600V |
| Max.Charge/Discharge Current |
30A |
| Battery Type |
Li-ion / Lead-acid / Sodium metal chloride battery |
| AC Data |
|
| Nominal Power |
6 |
| Nominal Voltage |
3P+N+PE/3P+PE 230/400 |
| Nominal Frequency |
50/60 |
| Max.Current |
10.5 |
| Power Factor |
1（-0.8-0.8 adjustable） |
| Protection |
|
| Protection |
Reverse Polarity Protection
Over Current / Voltage Protection
Anti-islanding Protection
AC Short-circuit Protection
Leakage Current Detection
Ground Fault Monitoring
Grid Monitoring |
| General Data |
|
| Operating Temperature Range |
-25 to 60 °C |
| Cooling |
Natural Convection |
| Relative Humidity |
0-100% |
| Display |
LCD/ LED |
| Communication |
RS485, CAN, Wi-Fi, GPRS, 4G |
| Installation |
Wallet |
| Dimension (W*D*H) |
370 x 598.5 x 192mm |
| Weight |
22kg |
| Certification |
|
| Production Certification |
NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2 |
Perfect Applications for Your Energy Goals
The versatility of the 9kW hybrid inverter makes it an ideal solution for a wide range of users:
- Energy-Conscious Homeowners: Families looking to significantly reduce electricity bills, increase self-sufficiency, and gain reliable backup power for essential loads.
- Home Offices & Small Businesses: Perfect for powering small workshops, retail stores, or offices that operate during the day and want to protect against power interruptions.
- Areas with Unstable Grids: Provides a stable and clean power supply in regions experiencing frequent blackouts or voltage fluctuations.
- Eco-Conscious Projects: An excellent choice for green buildings, eco-homes, and anyone aiming to maximize their use of renewable energy and minimize their carbon footprint.
Why Choose HuiJue's 9kW Hybrid Solar Inverter?
The 9kW Hybrid Grid-Tied Solar Inverter is the perfect solution for homeowners and small businesses seeking reliable and efficient solar energy systems. With its hybrid functionality, the inverter allows you to generate solar energy while storing excess power for later use or backup. Its high efficiency, ease of installation, and advanced monitoring features make it an ideal choice for improving energy reliability and reducing electricity costs.
