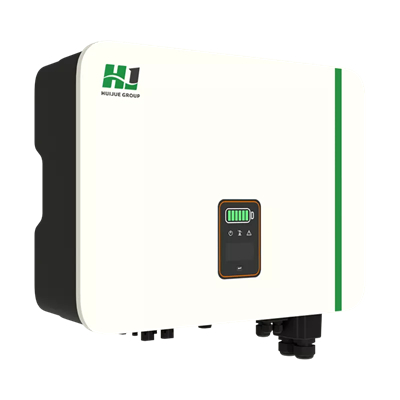

8kW-10.4kW Hybrid Grid-Tied Solar Inverter: Your All-in-One Home Energy Hub

The 8kW-10.4kW Hybrid Grid-Tied Solar Inverter from HuiJue Group provides a flexible, efficient, and reliable solution for residential and commercial solar installations. Combining the benefits of solar energy with battery storage, this inverter optimizes energy use while ensuring a seamless connection to the grid. With its advanced features, this hybrid inverter ensures you maximize your solar power investment, making it an ideal choice for energy independence and cost savings.

What is a Hybrid Solar Inverter?

Unlike a standard grid-tied inverter that only converts solar power for immediate use or export, a hybrid inverter is the brain of a multi-source energy system. It intelligently directs energy flow between three key sources:

• Solar Panels: Your primary, clean energy source.
• Battery Storage: Your personal energy reserve for use at night or during outages.
• The Utility Grid: Your backup source and an outlet for excess energy.

This hybrid solar converter makes decisions in real-time to maximize your self-consumption of solar energy, protect you from blackouts, and optimize your energy expenses.

Key Features and Benefits

1. Uninterruptible Power Supply (UPS) Functionality

Experience true peace of mind. In the event of a grid failure, our hybrid inverter switches to backup power in less than 10 milliseconds—so fast that your lights and essential appliances won't even flicker. This critical load support ensures your refrigerator, internet, medical devices, and lights stay on, keeping your home safe and functional.

2. Maximize Solar Self-Consumption & Savings

Why sell solar power cheaply only to buy it back at night at a higher price? This solar battery inverter is designed for self-consumption first.

• During the day, it powers your home directly with solar energy and charges your battery.
• In the evening, it seamlessly switches to using the stored battery power, drastically reducing your reliance on the grid.
• Only when both solar and battery are depleted does it draw minimal power from the grid.

This smart energy arbitrage leads to significantly lower electricity bills.

3. Flexible and Future-Proof Design

Start with a solar-only system and add batteries later, or install a complete system upfront. This inverter's modular design offers exceptional flexibility. It is compatible with leading lithium battery technologies, including LiFePO4, allowing you to choose the storage capacity that fits your current budget and expand it as your needs grow.

4. Intelligent Energy Management

Take control from anywhere in the world. Via a user-friendly mobile app, you can:

• Monitor real-time energy production, consumption, and battery status.
• Set operating modes (e.g., "Eco Mode," "Backup Priority").
• View historical data and savings reports.
• Receive system alerts and perform diagnostics.

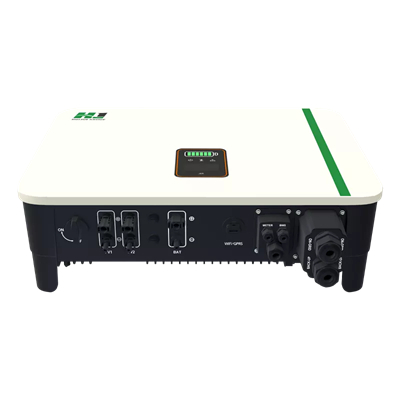

Technical Specifications

Production Model	HJ-IH4853T(E-11)	HJ-IH4883T(E-13)
PV Input Date
Max, Input Power	8KW	10.4KW
MPPT Operating Voltage Range	150-850V	200-850V
Max.Short Circuit Current	16/16A
Number of MPPT Trackers	2
Battery Input Data
Battery Voltage Range	140-750V
Max.Charge/Discharge Current	25/25A
Battery Type	Li-ion / Lead-acid
AC Data
Nominal Power	5KW	8KW
Nominal Voltage	3L/N/PE, 230/400V
Nominal Frequency	50/60 45-55/55-65 Hz
Max.Current	8.3A	13.3A
Power Factor	0.8 leading…0.8 lagging
Protection
Protection	DC Reverse Polarity Protection Integrated Battery Input Reverse Connection Protection Integrated Insulation Resistance Detection Integrated DC Switch Optional Surge Protection Integrated Over-temperature Protection Integrated Residual Current Protection Integrated Anti-islanding Protection Integrated AC Over-voltage Protection Integrated Overload Protection Integrated AC Short-circuit Protection Integrated
General Data
Operating Temperature Range	-30~60
Cooling	Natural Convection
Relative Humidity	0~100%
Display	OLED/LED
Communication	WiFi / LAN (Optional)
Installation	Wall-mounted/bracket
Dimension (W*D*H)	550*410*175mm
Weight	26~28kg
Certification
Production Certification	IEC62109、IEC62116、VDE4105、VDE0126、AS4777、RD1699、NBR16149、IEC61727、IEC60068、IEC61683、EN50549、EN61000

Perfect For These Applications

• Homeowners Seeking Energy Independence: Reduce your electricity bill by 70% or more and gain protection from blackouts.
• Areas with Unreliable Grids or Frequent Outages: Ensure a continuous, high-quality power supply for your household.
• Time-of-Use (TOU) Bill Management: Program the system to avoid using expensive peak-time grid electricity.
• The Eco-Conscious Family: Maximize the use of your clean, renewable solar energy and minimize your carbon footprint.

Why Choose HuiJue Group?

HuiJue Group specializes in integrated energy solutions. We don't just sell components; we provide a complete, optimized home energy storage system (ESS). Our hybrid inverters are built with industry-leading components, undergo rigorous testing, and are backed by comprehensive warranties and expert technical support. We are committed to delivering reliable, smart, and value-driven products that empower our customers to harness the sun's energy efficiently.
