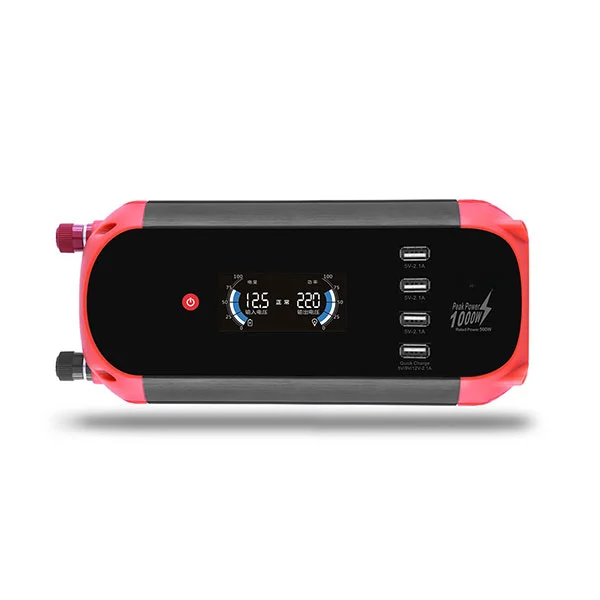

The 500W Car Inverter | USB Modified Sine Wave can be described as the ultimate power solution for a mobile application, which has flexibility and efficiency in powering varied devices on the go. The inverter continuously delivers 500W of power with a peak power of 1000W. The inverter converts DC12V to AC100V/110V/120V/220V/230V/240V; hence, this product is suitable for most appliances. Its lightweight and compact design, aluminum alloy shell, ensure high hardness and good heat dissipation. The product provides several USB outputs for charging; some of them even support fast charging, making it perfect for both professional and entertaining purposes.
| Parameter | 500w car inverter |
|---|---|
| Model | 500w car inverter |
| Rated Power (W) | 500 |
| Derating Power (W) | 1000 |
| Output Voltage | 230V |
| Frequency (Hz) | 50/60 |
| Waveform | Modified Sine Wave |
| Battery Voltage (V) | 12 |
| Voltage Range (V) | 10V-15.5V |
| DC Current (A) | 30 |
| Load Loss (A) | 0.2 |
| Standby Current (mA) | 20 |
| Maximum Efficiency (%) | 89 |
| Battery Type | Lead-Acid Battery/Lithium Battery |
| Fuse Rating (A) | 40A*2 |
| Battery Low Voltage Protection (V) | 10 |
| Battery High Voltage Protection (V) | 15.5 |
| Battery Reverse Polarity Protection | Yes |
| Over Temperature Protection | LCD display shows high-temperature protection, inverter shuts down, automatically recovers when temperature decreases |
| Output Short Circuit Protection | LCD display shows short circuit protection, unplug and restart the inverter to recover output |
| Operational Temperature Range (°C) | 0-40 |
| Working Humidity | 20-90%RH |
| Storage Temperature (°C) | -30°C-+70°C |
| Storage Humidity | 10-95%RH |
| Net Weight (g) | 910 |
| Dimensions (LWH) (mm) | 230*101*82 |
| Protection Level | IP65 |
| Night Self-Consumption (W) | 1 |
| Topology Structure | Non-isolated |
| Grid Standard | NB/T32004 |
| Safety Standard | NB/T32004 |
| EMC Standard | NB/T32004 |
