The 150kW-250kW Industrial Hybrid Grid-Tied Solar Inverter from HuiJue Group is designed to meet the energy needs of large-scale commercial and industrial solar applications. With its hybrid functionality, this inverter supports both solar energy generation and battery storage, offering exceptional performance, flexibility, and efficiency. Seamlessly integrated with the grid, it ensures reliable power supply and maximizes energy savings.
Next-Level Power Management for Demanding Operations
Our industrial-grade hybrid inverter acts as the intelligent command center for your entire energy ecosystem. It dynamically manages energy flow based on real-time conditions and your operational priorities.
- Triple-Source Flexibility: Seamlessly blends power from your PV array, a high-voltage battery bank, and the three-phase grid to ensure optimal supply at all times.
- Mission-Critical Reliability: Features a sub-10ms transfer switch to provide UPS-grade backup power, preventing costly downtime for sensitive industrial equipment during grid outages.
- Intelligent Economic Modes: Automatically prioritizes low-cost solar and stored energy, exports surplus during peak rates, and minimizes grid dependency to slash your electricity bills.

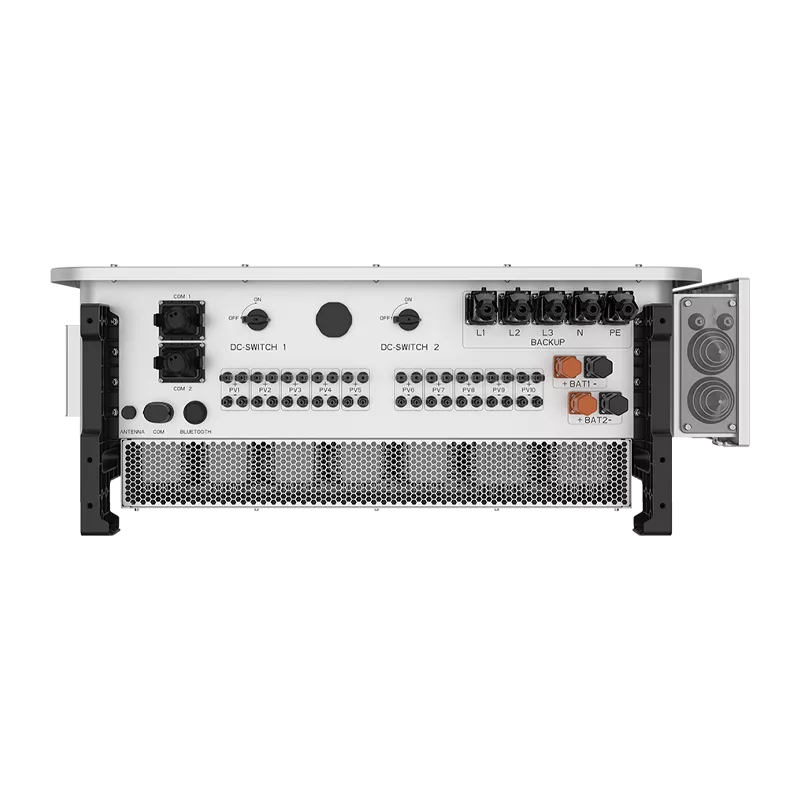

Engineered for Maximum Performance & Uptime
Unmatched Solar Harvesting Capacity
Designed to capture every possible kilowatt-hour from expansive PV arrays.
- Massive PV Oversizing: Supports PV input up to 2 times the rated AC power, allowing for larger solar arrays that produce more energy during low-light conditions and throughout the day.
- Superior String-Level Optimization: Equipped with 10 independent MPPT trackers, offering exceptional design flexibility for complex roof layouts or multiple array orientations, minimizing losses from shading or mismatch.
- High-Current Module Ready: Fully compatible with modern, high-power PV modules, supporting string currents up to 21A.
Scalable & Flexible High-Voltage Storage
Build a future-proof energy reserve that grows with your needs.
- Wide Voltage Range: Compatible with high-voltage battery systems from 300V to 950V DC, enabling efficient, cost-effective integration with large-scale lithium-ion storage solutions.
- Dual Battery Ports: Two independent ports allow for flexible battery bank configuration, parallel connections, and straightforward capacity expansion without replacing the core inverter.
- High-Power Charging: A maximum charging current of 200A ensures rapid replenishment of your battery storage, maximizing availability for backup or arbitrage.
Advanced Intelligence & Grid Integration
More than an inverter—a smart grid participant and revenue generator.
- AI & VPP Ready: Embedded AI algorithms optimize energy dispatch based on consumption patterns and dynamic tariffs. Ready for VPP participation to unlock additional revenue streams.
- Active Grid Support: Provides dynamic reactive power compensation to improve local power factor, avoid utility penalties, and support grid stability.
- Demand Management: Integrates PV and storage to actively shave peak demand charges and prevent reverse power flow, ensuring compliance with stringent grid codes.
Technical Specifications
The comprehensive table below details the key parameters across the four models in our high-power hybrid solar inverter series.
| Production Model |
HJ-IH48753T(E-15) |
HJ-IH48803T(E-16) |
HJ-IH48104T(E-17) |
HJ-IH48124T(E-18) |
| PV Input Date |
|
| Max, Input Power |
150 KW |
160 KW |
200KW |
250KW |
| MPPT Operating Voltage Range |
150 – 950 V |
| Max.Short Circuit Current |
10 × 42 A |
| Number of MPPT Trackers |
10 |
| Battery Input Data |
|
| Battery Voltage Range |
300 – 950 V |
| Max.Charge/Discharge Current |
200 A / 100 A + 100 A |
| Battery Type |
li-ion |
| AC Data |
|
| Nominal Power |
75kw |
80kw |
100kw |
125kw |
| Nominal Voltage |
3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal Frequency |
50/60 Hz |
| Max.Current |
114 A / 108.3 A |
121.6 A / 115.5 A |
151.9 A / 144.3 A |
189.9 A / 180.4 A |
| Power Factor |
> 0.99 (0.8 leading – 0.8 lagging) |
| Protection |
|
| Protection |
Anti-islanding protection
Output over current protection
Short circuit protection
Integrated DC switch
DC reverse-polarity protection
Surge protection
Integrated AFCI 2.0 |
| General Data |
|
| Operating Temperature Range |
-25 ~ +60°C |
| Cooling |
Intelligent fan-cooling |
| Relative Humidity |
0 – 100% |
| Display |
LCD |
| Communication |
CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN |
| Installation |
Wall-mounted |
| Dimension (W*D*H) |
1174 × 814 × 400 mm |
| Weight |
170 kg |
| Certification |
|
| Production Certification |
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
Target Applications
This series is the ideal cornerstone for projects where energy reliability, scale, and intelligence are non-negotiable:
- Manufacturing & Industrial Plants: To reduce peak demand charges, ensure process continuity during outages, and meet corporate sustainability targets.
- Large Commercial Complexes: Shopping malls, data centers, and office towers requiring stable, clean power and significant cost reduction.
- Agricultural & Water Processing Facilities: For powering heavy irrigation pumps, processing equipment, and cold storage in grid-constrained areas.
- Microgrids & Renewable Energy Parks: As the central controller for community microgrids or hybrid systems integrating solar, wind, and generator sets.
- Electric Vehicle Charging Hubs: To provide grid-stabilizing power and renewable energy for high-power DC fast charging stations.
Why Choose HuiJue's Hybrid Solar Inverter?
The 150kW-250kW Hybrid Grid-Tied Solar Inverter is the perfect solution for large-scale energy systems requiring high power output and reliable storage. With its hybrid functionality, high efficiency, and seamless grid integration, it ensures optimal solar power utilization while offering flexible energy storage capabilities. Whether you are looking to reduce energy costs or increase energy reliability, this inverter provides the perfect balance of performance and sustainability for commercial and industrial solar applications.
