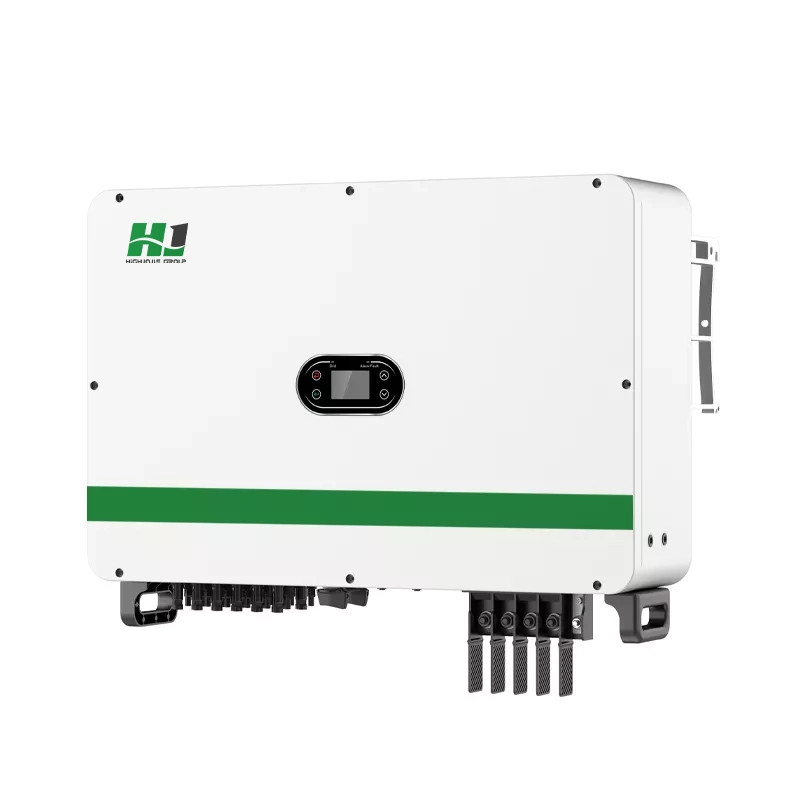

Engineered for performance and durability in demanding commercial and industrial environments. Our HJ-IG48803T(E-33) model maximizes your solar investment through superior energy harvest, robust protection, and intelligent management for large-scale rooftop and ground-mounted PV plants.
Features 6 independent MPPT trackers with a wide 180-1000V operating range, ensuring maximum power harvest from complex solar arrays with different orientations or partial shading.
With an IP66 ingress protection rating and C5-M anti-corrosion level, this inverter is built to withstand dust, water jets, and corrosive atmospheres, ensuring long-term reliability outdoors.
Integrated smart string monitoring, I-V curve scanning, and per-MPPT insulation fault detection enable rapid troubleshooting and enhance overall system safety and uptime.
Provides fast reactive power response, potentially replacing separate SVG devices. Supports thick aluminum cable connections and PLC communication to reduce material and installation costs.
Detailed performance data and electrical parameters for system design and integration.
| Category | Parameter | Specification |
|---|---|---|
| PV Input (DC) | Maximum DC Input Power | 120 kW |
| Number of MPPT Trackers | 6 | |
| MPPT Operating Voltage Range | 180 - 1000 V | |
| Max. Input Current per MPPT | 40A (Short Circuit) | |
| Recommended Module Compatibility | 182 & 210mm bifacial modules | |
| AC Output | Rated AC Output Power | 80 kW |
| Nominal Grid Voltage | 230V/400V, 3L/N/PE | |
| Nominal Frequency | 50 Hz / 60 Hz | |
| Power Factor Range | >0.99 (0.8 leading to 0.8 lagging) | |
| Protection & Safety | Protection Degree | IP66 |
| Corrosion Resistance | C5-M Level | |
| Key Protections | Anti-islanding, DC reverse polarity, AC short circuit, insulation resistance monitoring, ground fault, surge protection | |
| Monitoring | Smart string monitoring, I-V curve scan, remote DC switch release | |
| Temperature Detection | Intelligent AC/DC terminal monitoring | |
| General Data | Operating Temperature | -30°C to +60°C |
| Cooling | Smart forced cooling | |
| Communication | RS485, Wi-Fi, GPRS, Ethernet, PLC | |
| Dimensions (W×D×H) & Weight | 780 × 585 × 333 mm / 77.8 kg |
Note: Specifications are subject to change without notice for continuous product improvement. Refer to the official datasheet for final design and procurement.
HuiJue Group combines robust product engineering with deep expertise in C&I solar solutions. We offer comprehensive support from design to after-sales service to ensure your project's success and maximum return on investment.
