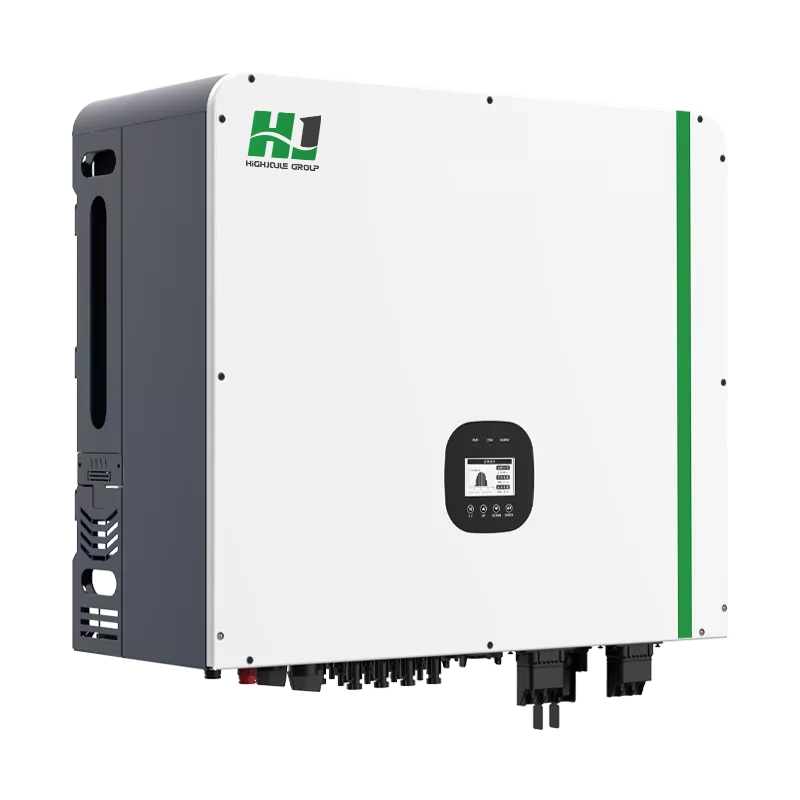

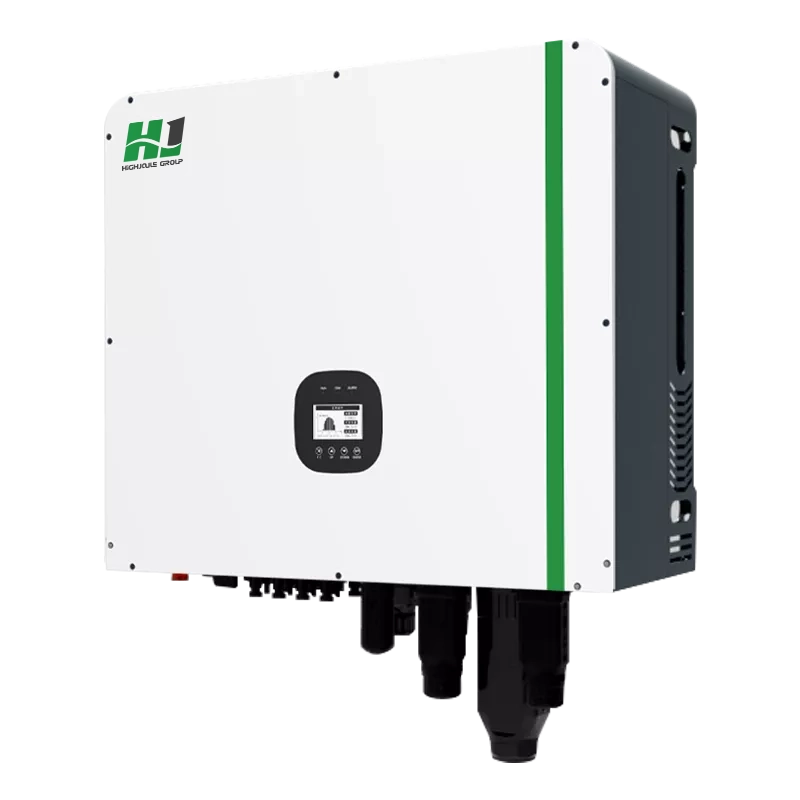

The 102kW Hybrid Grid-Tied Solar Inverter from HuiJue Group is engineered for large-scale solar applications. Combining solar energy generation with energy storage capabilities, this inverter delivers high efficiency, flexibility, and seamless integration with the grid. Ideal for industrial and commercial solar installations, the 102kW inverter ensures maximum energy utilization, cost savings, and enhanced energy independence.
The Power of a True Hybrid System
A hybrid solar inverter is the core of a modern, self-sufficient energy system. Unlike standard grid-tie inverters, our hybrid model provides intelligent control over where your energy comes from and where it goes.
- Solar First: Prioritizes using free, clean energy from your panels to power your operations and charge your batteries.
- Storage Smart: Stores excess solar energy for use during peak tariff periods, at night, or as a ready backup.
- Grid Intelligent: Seamlessly interacts with the grid to sell surplus power or draw minimal energy as a last resort, all while providing grid-support services.
- Uninterrupted Power: Features a sub-10ms transfer switch to maintain power to critical loads during a grid outage, ensuring business continuity.
Core Features and Competitive Advantages
1. High-Capacity Performance and Compatibility
Built for demanding applications, this inverter handles high-power setups with ease.
- Massive PV Input: Supports up to 102kW of solar input, allowing for significant PV array oversizing (up to 2x the nominal output) to maximize energy harvest in all conditions.
- High-Current String Compatibility: With a maximum string input current of 21A per tracker, it is fully compatible with today's high-power 182mm and 210mm PV modules.
- Flexible Battery Integration: Features two independent battery ports and supports a wide voltage range (200-850V DC), compatible with both Lithium-ion and Lead-acid technologies, including large 100-314Ah modules for scalable storage.
2. Unmatched Reliability and Grid Support
Engineered for stability and intelligence, providing value beyond simple conversion.
- Ultra-Fast Backup Switching: Patented dual-mode switching technology ensures a seamless transition to off-grid backup power in less than 10 milliseconds, preventing any disruption to sensitive equipment.
- Grid-Stabilizing Features: Offers dynamic reactive power compensation to improve the local power factor and reduce utility charges. It is also ready for Virtual Power Plant (VPP) participation, opening potential revenue streams.
- Robust Overload Capacity: Delivers 160% overload power for 200ms in off-grid mode, enabling the stable start-up of heavy inductive loads like motors and pumps.
3. Intelligent Management for Maximum ROI
Smart features designed to optimize every kilowatt-hour and protect your investment.
- Advanced Energy Arbitrage: AI-driven optimization can schedule battery charging and discharging based on time-of-use tariffs, minimizing electricity costs.
- Comprehensive System Integration: Effectively manages PV and storage to provide demand management and anti-reverse power flow functions, ensuring compliance with grid regulations.
- Patented Thermal Management: A superior cooling system guarantees reliable, continuous operation and high efficiency even in high-temperature ambient conditions up to 60°C.
Technical Specifications
| Production Model |
HJ-IH48603T(E-14) |
| PV Input Date |
|
| Max, Input Power |
102KW |
| MPPT Operating Voltage Range |
180-900V |
| Max.Short Circuit Current |
36/36/36/36 |
| Number of MPPT Trackers |
4 |
| Battery Input Data |
|
| Battery Voltage Range |
200-850V |
| Max.Charge/Discharge Current |
140/140A |
| Battery Type |
Li-ion/Lead-acid |
| AC Data |
|
| Nominal Power |
60KW |
| Nominal Voltage |
380/400V,3L/N/PE50/60 |
| Nominal Frequency |
50/60Hz |
| Max.Current |
95A |
| Power Factor |
~1(0.8 lead to 0.8 lag can be set) |
| Protection |
|
| Protection |
DC Reverse Polarity Protection
Over Current Protection
Anti islanding protection
AC short circuit protection
Leakage current protection
Insulation resistance testing
Surge protection |
| General Data |
|
| Operating Temperature Range |
-25~60(>45 derating ) |
| Cooling |
Forced air cooling |
| Relative Humidity |
0~95， No condensation |
| Display |
LCD |
| Communication |
Rs485 |
| Installation |
Wall-mounted/bracket |
| Dimension (W*D*H) |
800*875*350 |
| Weight |
100kg(Excluding back hanging board) |
| Certification |
|
| Production Certification |
IEC/EN 62109-1/-2
IEC/EN 61000-6-1/-2/-3/-4 |
Ideal Applications
This robust hybrid solar converter is perfectly suited for scenarios demanding high power, reliability, and intelligent energy management:
- Commercial & Industrial Facilities: Factories, warehouses, data centers, and office buildings seeking to reduce demand charges, ensure backup power, and achieve sustainability goals.
- Large Residential Complexes & Agricultural Operations: Multi-unit dwellings, farms, and remote estates needing a reliable, off-grid capable power supply for essential operations and heavy machinery.
- Microgrids & Telecom Infrastructure: A cornerstone for independent microgrids and remote telecom base stations requiring a blend of solar, storage, and generator support for 24/7 uptime.
- EV Charging Hubs: An integral part of a PV-Storage-Charging (PV-BESS-EV) system, stabilizing the grid impact of fast chargers and providing renewable energy for transportation.
Engineered by HuiJue Group: Your Partner in Energy Independence
HuiJue Group specializes in delivering integrated, future-proof energy solutions. Our 102kW Hybrid Inverter is built with industry-leading components and embodies our commitment to innovation, reliability, and superior value. We provide more than just hardware; we offer comprehensive system design support and are passionate about creating customized solar-plus-storage solutions that meet your specific financial and operational objectives.
Why Choose HuiJue's 102kW Hybrid Solar Inverter?
The 102kW Hybrid Grid-Tied Solar Inverter is an excellent solution for large-scale energy systems. With hybrid functionality, it integrates both solar energy generation and energy storage, making it highly adaptable for varying energy needs. Its high efficiency, smart monitoring system, and seamless grid integration make it an ideal choice for commercial and industrial users looking to maximize energy savings and improve sustainability.
